UltraTube

UltraTube offers significantly greater yield strength than conventional mild steel grades.

UltraTube is a high-performance steel tube made from advanced dual-phase (DP) steel. Its ferrite–martensite microstructure offers a unique combination of high strength, good ductility, and excellent weldability.

It maintains a good level of formability, excellent weld-ability, a smooth surface finish, and highly consistent mechanical properties.

Enables thinner-wall designs in frames, components, and load-bearing structures where strength and durability are critical.

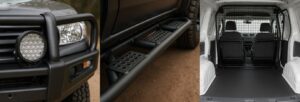

Examples of UltraTube application

SPECIFICATION

Made from EU-sourced cold-rolled dual-phase steel, UltraTube offers significantly greater yield strength than conventional mild steel grades. Base material standard EN10131:2006

MECHANICAL PROPERTIES

Tensile strength typical 780 Mpa.

SIZES AND LENGTH

Round from 22.2mm – 44.5mm, from 1.6 – 2.5mm. UltraTube standard length is 5.5m but available ex-mill rolling in various lengths. Other profiles are available on application.

UltraTube Dual Phase Steel

Dia

1.6

2.0

Rounds

kg/m

22.2

0.81

25.4

0.93

31.8

1.17

1.42

34.9

1.30

38.1

1.36

1.78

41.3

1.89

44.5

1.65

2.03

50.8

1.88

60.3

2.28

63.5

2.39

Find out more

DOWNLOAD SPEC SHEET

UltraTube Fabrication Guide Digital
